Name: HP Thunderbolt 4 Ultra 280W G6 Dock
Brand: HP
SKU: AW5M5UT#ABA
Price: 449.99 USD
Availability: InStock
Rating: 3 (11 reviews)

HOME/

PRIVATE STORES/

REAL TRUCK/

Add to compare

Product # AW5M5UT#ABA

Powerful connections in an instant
Hands-off manageability
Everything, secured
Built to lastSee all Specs

Can't find what you are looking for?

3% back in HP Rewards

Engineered for Sustainability

Add an HP Care Pack to protect your new device

3-Year Standard Warranty

Included

HP 3year Next Business Day Response Advanced Exchange Docking Station HWSupp

Remote problem diagnosis and technical telephone support
Prepaid shipping label, materials, and instructions
Convenient door-to-door service
Next Business day exchange

Service starts on date of hardware purchase. Restrictions and limitations apply.

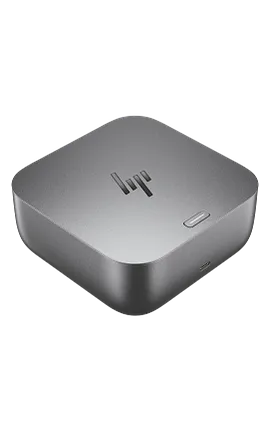

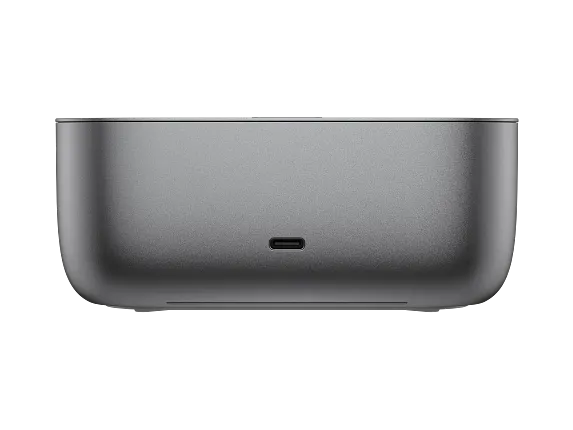

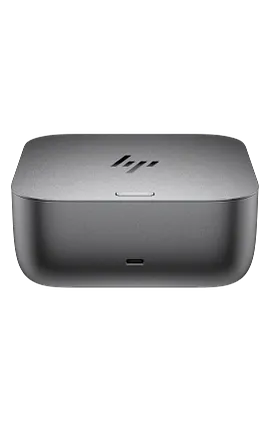

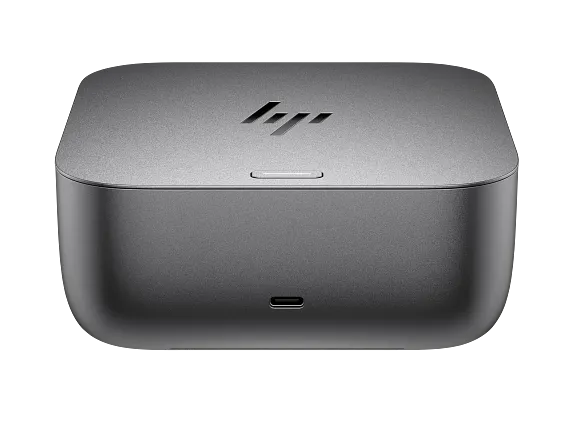

HP Thunderbolt 4 Ultra 280W G6 Dock

$0.00

Work without interruptions and maximize productivity with ultimate power delivery from the HP Thunderbolt 4 Ultra 280W G6 Dock. Effortlessly manage, connect and power the devices you love with state-of-the-art security and connectivity.

Powerful connections in an instant

Find true momentum with uninterrupted connections to your devices. HP Quick Connect[1] wakes your devices before you even take a seat. Stay in your flow all day with up to 280W[3] of power delivery and 40 Gbps of data transfer speeds via Thunderbolt™ 4 technology[2] and all the ports you need to connect your setup.

Hands-off manageability

Cloud manageability with Poly Lens[4] unlocks hands-off manageability from anywhere. Administer automatic firmware updates anytime and easily monitor telemetry and analytics to optimize workspaces and support users effectively.

Everything, secured

Prevent potential threats with HP Wolf Security[5], interlacing HP Sure Start[6] and Zero Trust Framework to provide complete end-to-end security. Work and rest easy knowing everything from the dock to the cloud is protected.

Built to last

Thoughtfully designed with longevity in mind. Durably crafted[7] with replaceable parts to maximize your fleet's lifecycle. Built with a power consumption module to monitor your energy consumption. Consciously wrapped in plastic-free packaging[8].

Recommended Accessories

Technical Specs

HP Thunderbolt 4 Ultra 280W G6 Dock

External Ports Location 01

Front

External Ports 01

1 USB Type-C® 10Gbps signaling rate (up to 15 W USB Power Delivery)

External Ports Location 02

Right side

External Ports 02

1 USB Type-A 10Gbps signaling rate (charging)
1 nano security lock slot
1 USB Type-C® 10Gbps signaling rate (up to 15 W USB Power Delivery)

External Ports Location 03

Left side

External Ports 03

2 USB Type-A 10Gbps signaling rate (charging)

External Ports Location 04

Rear

External Ports 04

1 Thunderbolt™ 4 with USB Type-C® 40Gbps signaling rate
1 USB Type-C® 10Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4)
2 USB Type-A 5Gbps signaling rate (charging)
1 HDMI 2.1
2 DisplayPort™ 1.4
1 RJ-45 (2.5 GbE)

Power supply

330 W external power adapter

Connection Type

Thunderbolt™ 4 and 4.5 mm power barrel[2]

Manageability features

HP CMSL
Disconnected Firmware updates
eTag
PXE Boot
Wake on LAN (from the Off, Sleep or Hibernation states)
MAC address pass-through (from the On, Off, Sleep or Hibernation states)
LAN/WLAN switching
Disable LAN
Event messaging
Intel® vPro® Technology (wired)[8,9]

Security management

HP Sure Start
System network manageability in any power state (HP with HP)[2]

Cable length

3.2 ft

Power to Host

Up to 280 W via 4.5 mm power barrel or up to 180 W via Thunderbolt™ 4 cable (both HP and non-HP host devices that support Power Delivery 3.1)[15]

Power Delivery (PD) Profiles

12V/5A
15V/5A
20V/5A
5V/3A
9V/3A

Display Support

Up to 3 external displays and 1 PC display or up to 4 external displays

Power Button Type

Mechanical power button with RGB LED indicator to power or wake host system[6]

Compatibility

Tested and supported on select HP commercial PCs. For HP notebook compatibility please visit - https://pcb.inc.hp.com/webapp/#!/us-en and search by notebook. Tested and supported on select 3rd party PCs. Contact your local sales representative to learn more.

Compatible operating systems

Windows 10
Windows 11
macOS
Linux
ThinPro
ChromeOS

Minimum system requirements

USB Type-C® (USB Power Delivery, Alt Mode DisplayPort™)
Thunderbolt™ 4 port

Dimensions (W X D X H)

4.76 x 4.76 x 1.95 in

Weight

1.7 lb

Warranty

HP three-year limited warranty

What's in the box

HP Thunderbolt 4 Ultra 280W G6 Dock
330 W power adapter
Thunderbolt™ 4 and 4.5 mm power barrel combination cable (1 m)
Power cord
Product notice
Warranty card

Reviews and Q&A

HP Thunderbolt 4 Ultra 280W G6 Dock is rated 2.7 out of 5 by 7.

Rated 4 out of 5 by T0m12 from Great accessory The thunderbolt four is a great hub that HP has developed. The only issue that I see is since most wireless extras like a keyboard and mouse use old USB connectors there should be more of those available on the hub. Other than that, there is no latency in between the hub, the computer, the keyboard and the monitor. The hub stands as a seamless way to fully utilize your computer’s capability.

Date published: 2026-03-05

Rated 1 out of 5 by The dudeey from Expected a lot more. This was not easy to put into operation. I bought an HP laptop and figured this dock would work it’s been a few weeks and I still can’t figure it out. Not at all intuitive. Instructions very bad.

Date published: 2026-02-24

Rated 1 out of 5 by Horrible purchase from Buyer beware Worst computer ever. I would never buy again

Date published: 2026-01-20

Rated 1 out of 5 by Pat2301 from Bricked and Not Recognized By Laptop Dock worked for a couple of days, now can no longer connect. Re-installing drivers, checking laptop ports, but to no avail.

Date published: 2025-10-18

Will this be compatible with my HP ZBook Fury 16 G11 Mobile Workstation PC?

Asked by: Anonymous

Hello. Thanks for your question. We need more information on your HP ZBook Fury 16 G11 Mobile Workstation such as the product number. Here are some instructions: https://bit.ly/3p128NH Resubmit your question with the product number. We will respond to your question as soon as possible.

Answered by: HP Team Grant

Date published: 2025-05-06

Will this be compatible with my HP ZBook Fury 16 G11 Mobile Workstation PC? Product number B41P7EC#ABA Serial number 5CG4484XQD

Asked by: Anonymous

Hello. Thanks for your question. The HP ZBook Fury 16 G11 Mobile Workstation, B41P7EC#ABA, has two Thunderbolt 4 USB4 Type-C ports that support 40 Gbps data transfer speeds, USB Power Delivery, and DisplayPort 1.4. This makes it fully compatible with the HP Thunderbolt 4 Ultra 280W G6 Dock.

Answered by: HP Team Cheri

Date published: 2025-09-23

Is this compatible with the HP Omen Max laptop?

Asked by: ElliottW

Hello. Thanks for your question. We need more information on your HP Omen Max laptop such as the product number. Here are some instructions: https://bit.ly/3p128NH Resubmit your question with the product number. We will respond to your question as soon as possible.

Answered by: HP Team Cheri

Date published: 2025-10-31

Will this be compatible with my HP Zbook Firefly 16 g10?

Asked by: Anonymous

Hello. Thanks for your question. We need more information on your HP ZBook Firefly 16 G10 laptop such as the product number. Here are some instructions: https://bit.ly/3p128NH Resubmit your question with the product number. We will respond to your question as soon as possible.

Answered by: HP Team Cheri

Date published: 2025-05-25

Will this be compatible with my HP Zbook Firefly 16 G10, product # 7Z1L6UT#ABA and SN#5CG3280MRM. Thank you!

Asked by: Anonymous

Hello. Thanks for your question. The HP ZBook Firefly 16 inch G10 Mobile Workstation, 7Z1L6UT, has 2 Thunderbolt 4 with USB4 Type-C 40Gbps signaling rate (USB Power Delivery, DisplayPort 1.4, HP Sleep and Charge) ports. That means it is compatible with the HP Thunderbolt 4 Ultra 280W G6 Dock.

Answered by: HP Team Cheri

Date published: 2025-05-27

Can the HP Thunderbolt 4 Ultra 280W G6 Dock run dual 4 K @ 120 Hz displays?

Asked by: MrRyan3

Thank you for your question! The HP Thunderbolt 4 Ultra 280W G6 Dock supports the following resolutions: Non-Thunderbolt with Multi-Function PCs: (1) 4K UHD @120Hz* (2) QHD @120Hz* (3) FHD @120Hz* (1) FHD @360 Hz Non-Thunderbolt with High-Resolution PCs: (2) 4K UHD @120Hz* (3) QHD @120Hz* (2) FHD @360hz* (1) QHD @360hz* Thunderbolt with dual DisplayPort streams: (4) 4K UHD @60Hz* (2) 4K UHD @120Hz* (3) QHD @120Hz* (2) FHD @360hz* (1) QHD @360hz* (1) 8K @60Hz* Thunderbolt with single DisplayPort stream: (4) 4K UHD @60Hz* (2) 4K UHD @120Hz* (3) QHD @120Hz* (2) FHD @360hz* (1) QHD @360hz* (1) 8K @60Hz* For more information, visit this link: https://h20195.www2.hp.com/v2/getpdf.aspx/c09120492.pdf

Answered by: HP Team Grant

Date published: 2025-05-27

Is this compatible with the HP Omen Max, internal part number A4NQ6AV_1 per my order.

Asked by: ElliottW

is this compatible with my Omen gaming laptop 16-ae0xxx

Asked by: toasty12
