HP Thunderbolt 4 Ultra 180W G6 Dock

HP Thunderbolt 4 Ultra 180W G6 Dock

New

Other offers available with the product:

72-Hour Flash Sale

Product # 9X481UT#ABA
  • Powerful connections in an instant
  • Hands-off manageability
  • Everything, secured
  • Built to lastSee all Specs

Can't find what you are looking for?

Engineered for Sustainability
3% back in HP Rewards
Work without interruptions and maximize productivity with ultimate power delivery from the HP Thunderbolt 4 Ultra 180W G6 Dock. Effortlessly manage, connect and power the devices you love with state-of-the-art security and connectivity.

Powerful connections in an instant

Find true momentum with uninterrupted connections to your devices. HP Quick Connect[1] wakes your devices before you even take a seat. Stay in your flow all day with up to 180W[3] of power delivery and 40 Gbps of data transfer speeds via Thunderbolt™ 4 technology[2] and all the ports you need to connect your setup.

Hands-off manageability

Cloud manageability with Poly Lens[4] unlocks hands-off manageability from anywhere. Administer automatic firmware updates anytime and easily monitor telemetry and analytics to optimize workspaces and support users effectively.

Everything, secured

Prevent potential threats with HP Wolf Security[5], interlacing HP Sure Start[6] and Zero Trust Framework to provide complete end-to-end security. Work and rest easy knowing everything from the dock to the cloud is protected.

Built to last

Thoughtfully designed with longevity in mind. Durably crafted[7] with replaceable parts to maximize your fleet's lifecycle. Built with a power consumption module to monitor your energy consumption. Consciously wrapped in plastic-free packaging[8].

recommended accessories

Technical details

HP Thunderbolt 4 Ultra 180W G6 Dock

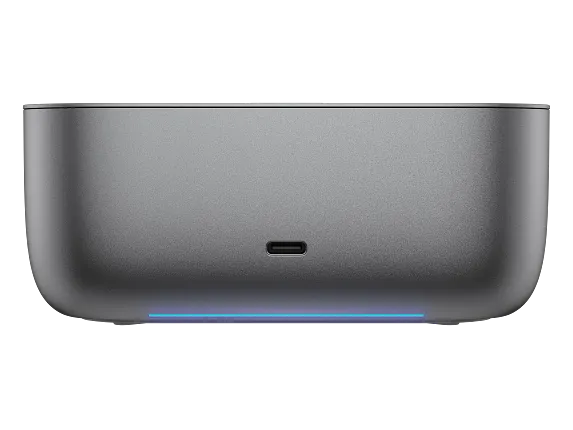

External Ports Location 01

Front

External Ports 01

1 USB Type-C® 10Gbps signaling rate (up to 15 W USB Power Delivery)

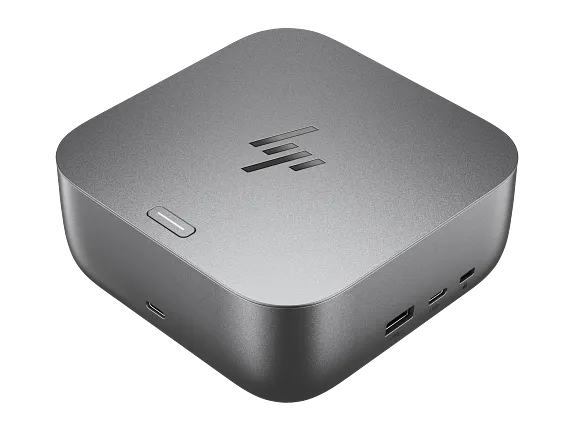

External Ports Location 02

Right side

External Ports 02

1 USB Type-A 10Gbps signaling rate (charging); 1 nano security lock slot; 1 USB Type-C® 10Gbps signaling rate (up to 15 W USB Power Delivery)

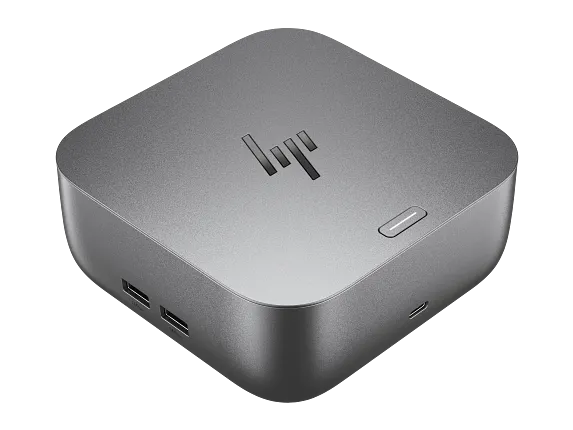

External Ports Location 03

Left side

External Ports 03

2 USB Type-A 10Gbps signaling rate (charging)

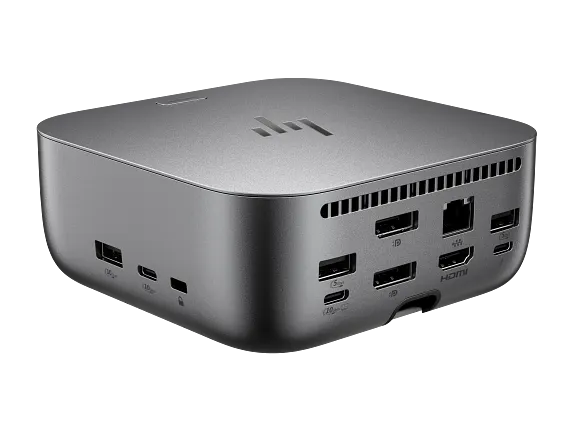

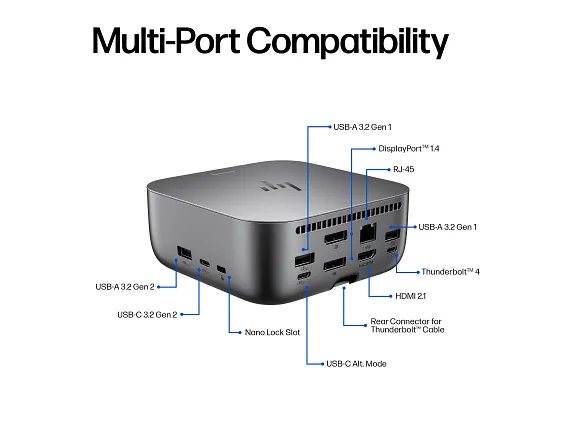

External Ports Location 04

Rear

External Ports 04

1 Thunderbolt™ 4 with USB Type-C® 40Gbps signaling rate; 1 USB Type-C® 10Gbps signaling rate (USB Power Delivery, DisplayPort™ 1.4); 2 USB Type-A 5Gbps signaling rate (charging); 1 HDMI 2.1; 2 DisplayPort™ 1.4; 1 RJ-45 (2.5 GbE)

Power supply

230 W external power adapter

Connection Type

Thunderbolt™ 4[2]

Manageability features

HP CMSL; Disconnected Firmware updates; eTag; PXE Boot; Wake on LAN (from the Off, Sleep or Hibernation states); MAC address pass-through (from the On, Off, Sleep or Hibernation states); LAN/WLAN switching; Disable LAN; Event messaging; Intel® vPro® Technology (wired)[8,9]

Cable length

3.2 ft

Power to Host

Up to 180 W via Thunderbolt™ 4 (both HP and non-HP host devices that support Power Delivery 3.1)[15]

Power Delivery (PD) Profiles

12V/5A; 15V/5A; 20V/5A; 5V/3A; 9V/3A

Display Support

Up to 3 external displays and 1 PC display or up to 4 external displays

Power Button Type

Mechanical power button with RGB LED indicator to power or wake host system[6]

Compatibility

Tested and supported on select HP commercial PCs. For HP notebook compatibility please visit - https://pcb.inc.hp.com/webapp/#!/us-en and search by notebook. Tested and supported on select 3rd party PCs. Contact your local sales representative to learn more.

Compatible operating systems

Windows 10; Windows 11; macOS; Linux; ThinPro; ChromeOS

Minimum system requirements

USB Type-C® (USB Power Delivery, Alt Mode DisplayPort™); Thunderbolt™ 4 port

Dimensions (W X D X H)

4.76 x 4.76 x 1.95 in

Weight

1.7 lb

Warranty

HP three-year limited warranty

What's in the box

HP Thunderbolt 4 Ultra 180W G6 Dock; 230 W power adapter; Thunderbolt™ 4 cable (1 m); Power cord; Product notice; Warranty card
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 6ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 3ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Will the Thunderbolt 4 Ultra 180W G6 Dock work with my Zbook Firelfly 16 g10? Specs say a G2 for my laptop on your site but I want the G6.

Asked by: Anonymous
Hello. Thanks for your question. We need more information on your Zbook Firelfly 16 G10 laptop such as the product number. Here are some instructions: https://bit.ly/3p128NH Resubmit your question with the product number. We will respond to your question as soon as possible.
Answered by: HP Team Cheri
Date published: 2025-05-25

What is the CPU and the GPU ? Is the OS preinstalled ?

Asked by: Crummy49
Thank you for your question! This HP Thunderbolt 4 Ultra 180W G6 Dock is a Docking Station and not a functioning PC. The HP Thunderbolt 4 Ultra 180W G6 Dock is used with compatible laptops to provide more ports and external displays.
Answered by: HP Team Grant
Date published: 2025-05-23

Is this Thunderbolt 4 Ultra 180W compatible with a HP ProBook 16" 460 G11 laptop, as I need enough power for my 3 screens (1-27" and 2-24")? With the G-5 dock I do not get the full 1920x1080 resolution that my Element EMF2FPABXXB monitors are capable of.

Asked by: PTH1
  • y_2025, m_6, d_12, h_6CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_3
  • loc_en_US, sid_9X481UT, prod, sort_[SortEntry(order=NUM_ANSWERS, direction=DESCENDING)]
  • clientName_hp
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getContent, 4ms
  • QUESTIONS, PRODUCT

SIMILAR PRODUCTS

Return and exchange information
HP.com will accept returns or exchanges for this product up to 30 days after delivery. A restocking fee may apply. For details, please visit: https://www.hp.com/us-en/shop/cv/returnsandexchanges.
