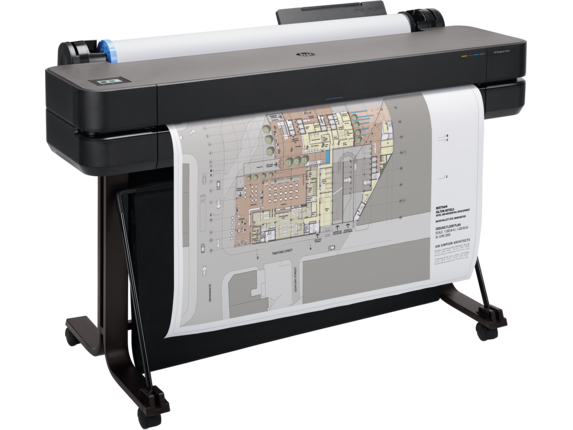

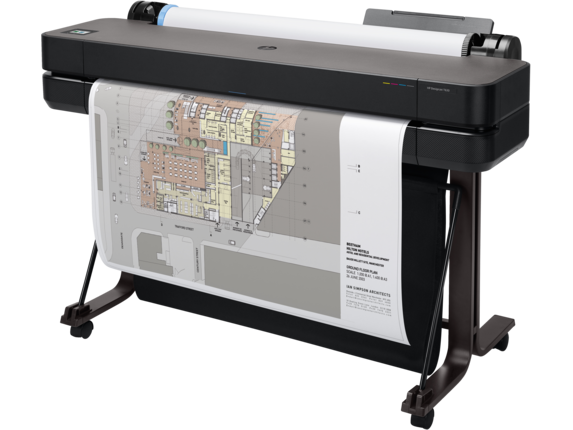

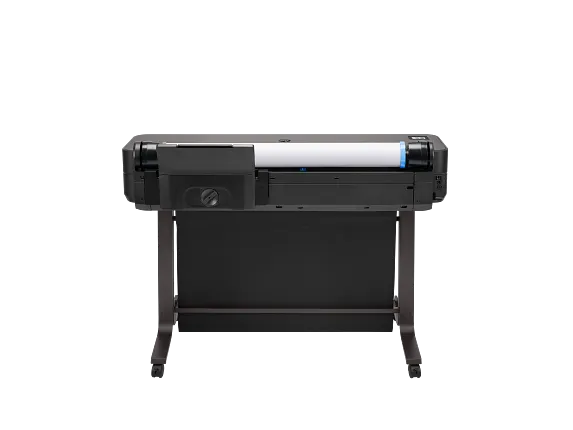

HP DesignJet T630 36-in Printer 2025 Edition, 5HB11D#B1K

HP DesignJet T630 36-in Printer 2025 Edition, 5HB11D#B1K

Energy Star
ENERGY STAR | Business

Other offers available with the product:

FREE Storewide Shipping

FREE Storewide Shipping

Earn triple HP Rewards on select printers, ink, toner, and paper

Memorial Day Sale

Product # 5HB11D#B1K
FunctionsPrint
  • 30 sec/page on D, 76 D prints per hour
  • Dye-based (C, M, Y); pigment-based (K)
  • Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter
  • Compliant with Class B requirements, including: USA (FCC rules)
  • Dynamic security enabled printerSee all Specs

Can't find what you are looking for?

9% back in HP Rewards
Add an HP Care Pack to protect your new device

Included

    • Remote problem diagnosis and support
    • Next business day[1] onsite hardware support
    • Replacement parts and materials included
    • Formal escalation procedures and management
    • Access to electronic support information and tools

    Service starts on date of hardware purchase. Restrictions and limitations apply.

    The world's smallest wide-format printer[4] with a built-in stand, is designed to fit your office, budget, and the way you work. Print multi-size projects with ease. Print your A1 plot as fast as 30 seconds. 1 GB memory.
    AEC, GIS, and MCAD professionals who want to print maps, technical drawings, posters, and renders with precise, accurate line quality and crisp text
    Simplify the way you print with the world's smallest plotters[1]. Save time with HP Click Print solutions[2]. Reduce energy[4], plastics use[6], waste[5]—and do more with a responsibly designed printer that fits the way you work.
    This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More at:
    http://www.hp.com/learn/ds

    INTUITIVE—Easy, effortless printing

    Print multi-size A3/B and A1/D or A0/E projects automatically, without manually switching the media source. Print multi-size A4/A to A0/E projects automatically, without manually switching the media source. Print your jobs and manage your plotter virtually anywhere, anytime with the HP app.[3]

    RESPONSIBLY DESIGNED—Reduce energy and plastic use

    Save 65% energy[4] with the printer on/off auto scheduler and enjoy efficient ink maintenance routines[5]. Use up to 95% less ink for routine maintenance vs competitor and get up to 100 extra A1/D pages per month.[5] Made with at least 40% recycled plastic[7] and the first HP large format printer containing recycled metal.[8] Certified by UL ECOLOGO®.[9] Registered in EPEAT Gold and achieves EPEAT Climate+[10].

    OPTIMIZED—Fits the way you work

    Avoid waiting by the printer with high-speed printing as fast as 30 seconds per A1/D plot. Avoid waiting by the printer with printing as fast as 30 seconds per A1/D plot.[11] Protect your printer from cyberthreats with HP Wolf Essential Security. Get high-quality results—HP Bright Office Inks deliver better line accuracy[12] and up to 34% more gamut.[13]

    recommended supplies & support

    Technical details

    HP DesignJet T630 36-in Printer

    Functions

    Print

    Print speed, maximum

    30 sec/page on D, 76 D prints per hour[1]

    Resolution (color)

    Up to 2400 x 1200 optimized dpi

    Print Technology

    HP Thermal Inkjet

    Number of print cartridges

    4 (C, M, Y, K) cartridges

    Product disclaimer

    This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More at:
    http://www.hp.com/learn/ds

    Compatible ink types

    Dye-based (C, M, Y); pigment-based (K)

    Print languages

    HP-GL/2, HP-RTL, CALS G4, JPEG, URF

    Connectivity, standard

    Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

    Memory, standard

    1 GB

    Hard disk

    None

    Non-printable area (cut-sheet)

    0.2 x 0.2 x 0.2 x 0.7 in (manual feed); 0.2 x 0.2 x 0.2 x 0.2 in (input tray)

    Line accuracy

    ±0.1%[3]

    Maximum optical density (black)

    8 L* min/2.10 D[4]

    Finished output handling

    Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

    Media sizes supported

    Auto sheet feeder: A, B; manual feed: A, B, C, D, E

    Media sizes supported

    Auto sheet feeder: A4, A3; manual feed: A4, A3, A2, A1, A0

    Media sizes, custom

    Auto sheet feeder: 8.3 x 11 to 13 x 19 in; manual feed: 8.3 x 11 to 36 x 74.7 in

    Media types

    Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

    Media sizes, standard

    11 to 36 in

    Roll external diameter

    3.9 in

    Media thickness

    Up to 11.8 mil

    Power

    Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max

    Power consumption

    <35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (off)

    Operating temperature range

    41 to 104ºF

    Warranty

    One-year limited hardware warranty

    Software included

    HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS

    Dimensions (W X D X H)

    51.9 x 23.8 x 36.7 in

    Weight

    76.5 lb

    Package weight

    123.5 lb

    What's in the box

    HP DesignJet T630 36-in Printer, printer stand, automatic sheet feeder, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord

    Recommended Media

    Q1396A HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m (24 in x 150 ft);C6019B HP Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m (24 in x 150 ft);C6029C HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 30.5 m (24 in x 100 ft)

    Dynamic security

    Dynamic security enabled printer
    Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
    HP DesignJet T630 36-in Printer 2025 Edition, 5HB11D#B1K is rated 4.2 out of 5 by 108.
    • y_2025, m_5, d_22, h_5
    • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
    • cp_3, bvpage2n
    • co_hasreviews, tv_54, tr_54
    • loc_en_US, sid_5HB11D, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_hp
    • bvseo_sdk, java_sdk, bvseo-4.0.0
    • CLOUD, getAggregateRating, 44ms
    • REVIEWS, PRODUCT
    Rated 5 out of 5 by Ohio43017 from Everything I expected and more I have had this for about a week and I am very happy with it. It is very fast, and an added bonus I was not aware of it can print to 8.5 x11 and 11x17 sheets too! Assembly was quick and easy. For a home office or low cost company office solution this foots the bill. I highly recommend this printer.
    Date published: 2020-12-21
    Rated 5 out of 5 by Cornerstone Environmental from No cartridge to be found. The printer is excellent so far, but can't find extra HP cartridges for the printer.
    Date published: 2020-12-09
    Rated 5 out of 5 by Tallassee from Awsome printer Great printer easy to set up was up and printing in no time
    Date published: 2020-11-03
    Rated 5 out of 5 by uriabq from Undeniable Without a doubt have been using HP since well forever. The hard part is always letting go of my previous HP plotter because some new update in windows will not let me use. But always buy HP, and from HP, best plotters for Design and Construction industry.
    Date published: 2020-10-25
    Rated 5 out of 5 by Anonymous from Smaller, Simpler, and Faster We were previously using a Canon printer and in comparison this printer is better in every way. It is smaller, which allows you to place it in smaller offices. It is a lot simpler to use and it prints about 20% faster
    Date published: 2020-10-08
    • y_2025, m_5, d_22, h_5
    • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
    • cp_3, bvpage2n
    • co_hasreviews, tv_54, tr_54
    • loc_en_US, sid_5HB11D, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
    • clientName_hp
    • bvseo_sdk, java_sdk, bvseo-4.0.0
    • CLOUD, getReviews, 8ms
    • REVIEWS, PRODUCT

    Does the HP DesignJet T630 36-inch plotter connect by ethernet and is network ready? or just WiFi Is it for commercial use? Does it come with the spindle? Does it come with any printer cartridges?

    Asked by: Public Works
    Hello. Thanks for your question. The HP DesignJet T630 36-inch plotter supports Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, and Wi-Fi 802.11 b/g/n, meaning it is network-ready and can connect via both Ethernet and Wi-Fi. For home use, it really depends on your space and printing needs. This printer is designed for AEC, GIS, and MCAD professionals who want to print maps, technical drawings, posters, and renders with precise, accurate line quality and crisp text. As the world&rsquo;s smallest wide-format printer with a built-in stand, it is designed to fit seamlessly into offices and workspaces while balancing budget-conscious features. It prints multi-size projects with ease, producing A1 plots in as fast as 30 seconds. The following items are included: printer stand, automatic sheet feeder, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, and power cord.
    Answered by: HP Team Cheri
    Date published: 2025-04-25

    Is This printer can print out photo paper ?

    Asked by: Samuel1298
    Hello. Thanks for your question. The HP DesignJet T630 36-in Printer 2025 Edition is primarily designed for large-format printing, including technical drawings, maps, and posters. It can print on HP Super Heavyweight Plus Matte Paper, D9R36A.
    Answered by: HP Team Cheri
    Date published: 2025-05-17

    Can you print PDF's from a USB thumb drive?

    Asked by: DeLorm
    Thank you for your question! Yes, the HP DesignJet T630 can print PDFs. It's a large format, wireless plotter printer that can print on a variety of file types, including PDF, JPEG, TIFF, DWF, and HP-GL/2. Features: One-click printing: Use the HP Click software to print PDFs with one click High-quality prints: Use HP Original inks to produce vibrant, accurate, and long-lasting prints Supports multiple media sizes: The printer can print on A4, A3, A2, A1, and A0 paper
    Answered by: HP Team Grant
    Date published: 2025-01-30

    Will it print on HP canvas!

    Asked by: LenetteE
    Hello. Thanks for your question. The HP DesignJet T630 36-in Printer 2025 Edition cannot handle canvas. Select HP DesignJet Z-series printers (Z6, Z9 and Z9 Pro) can handle printing on canvas. HP Artist Matte Canvas is compatible with T8W15A - HP DesignJet Z6 24-in PostScript Printer; T8W16A - HP DesignJet Z6 44-in PostScript Printer; T8W18A - HP DesignJet Z6dr 44-in PostScript Printer with V-Trimmer; 2QU25A - HP DesignJet Z6 Pro 64-in Printer; W3Z72A - HP DesignJet Z9+ 44-in PostScript Printer; W3Z71A - HP DesignJet Z9+ 24-in PostScript Printer; and X9D24A - HP DesignJet Z9+dr 44-in PostScript Printer with V-Trimmer.
    Answered by: HP Team Cheri
    Date published: 2025-04-20

    Will this plotter print on Arch D sheets? Or does it require Arch E paper?

    Asked by: tink and design
    Thank you for your question! This HP DesignJet T630 Large Format Wireless Plotter Printer - 36&quot; will support ArchD sheets. The maximum automatic sheet feeder has a max paper size of 13&quot; by 19&quot; so this will have to be manually fed due to the size.
    Answered by: HP Team Grant
    Date published: 2023-05-27

    Thank you for answering these questions. Can HP 630 print high resolution pictures at &quot;D&quot; size poster size?

    Asked by: Emre Ege
    You are welcome! This HP DesignJet T630 is capable of up to 2400 x 1200 optimized dpi printing. This will be able to print high-resolution pictures on poster size as long as the source material is of sufficient quality.
    Answered by: HP Team Grant
    Date published: 2023-05-27

    Does the T630 support Nesting?

    Asked by: T630Test
    It is unclear what is meant by &quot;Nesting&quot;. Please clarify the question and resubmit.
    Answered by: HP Team Grant
    Date published: 2023-09-18

    Using a 36&quot; roll, how long a sheet can I print? Can I print on waterproof materials?

    Asked by: Anonymous
    Thank you for your question! When using HP click software, you can print the entire length of the roll (e.g. 150 ft). When using a standard Windows driver, there is a print length limitation of 120 inches (10 ft). For the various media options available, please see: https://hp.globalbmg.com/en/
    Answered by: HP Team Grant
    Date published: 2023-06-27
