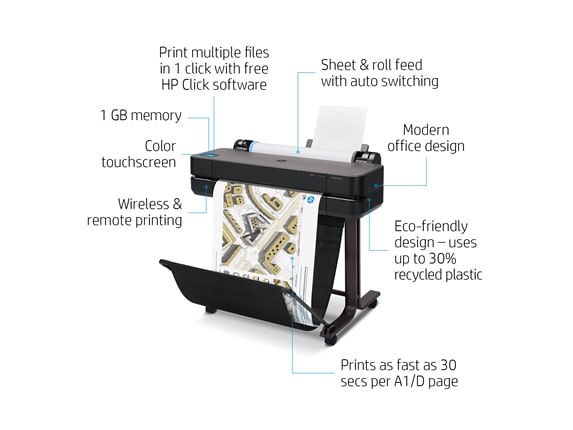

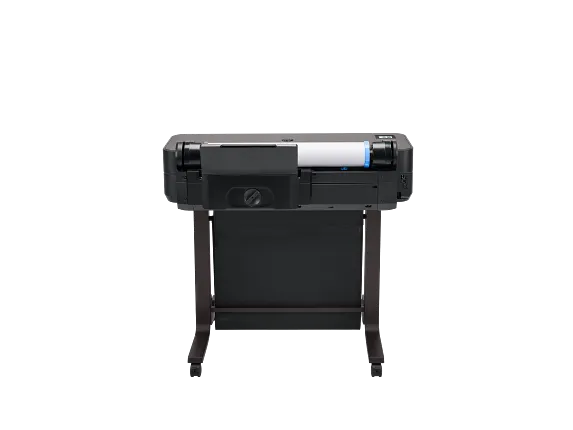

HP DesignJet T630 Large Format Wireless Plotter Printer - 24", with Mobile Printing (5HB09A)

FunctionsPrint
  • 30 sec/page on D, 76 D prints per hour
  • Dye-based (C, M, Y); pigment-based (K)
  • Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter
  • Compliant with Class B requirements, including: USA (FCC rules)
  • Dynamic security enabled printerSee all Specs

Can't find what you are looking for?

3% back in HP Rewards
Protect your Device with an HP Care Pack
Product # 5HB09A#B1K

HP DesignJet T630 Large Format Wireless Plotter Printer - 24", with Mobile Printing (5HB09A)

$0.00
The world's smallest wide-format printer[4] with a built-in stand, is designed to fit your office, budget, and the way you work. Print multi-size projects with ease. Print your A1 plot as fast as 30 seconds. 1 GB memory.
AEC, GIS, and MCAD professionals who want to print maps, technical drawings, posters, and renders with precise, accurate line quality and crisp text
This is affordability without any tradeoffs as the world’s easiest to use large-format printer.[1] Impressive simplicity that helps you stay productive. Cost saving efficiencies like using 95% less ink for routine maintenance.[5] Save time and money.
This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More at:
http://www.hp.com/learn/ds
More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% UL Validated recycled plastic.; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR® certified; EPEAT® registered

Extreme simplicity

Print multi-size A3/B and A1/D or A0/E projects automatically, without manually switching the media source. Save time with the world's easiest job submission[2]—send multiple files in one click with HP Click.[3] Print with confidence you'll get the results you expect with an intuitive driver and true print preview.

Fits your office and budget

Save space with the world's smallest plotters[4] designed to fit your office, including a built-in stand. Use up to 95% less ink for routine maintenance vs competitor and get up to 100 extra A1/D pages per month.[5] More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% recycled plastic.[6]

Fits the way you work

Avoid waiting by the printer with high-speed printing as fast as 30 seconds per A1/D plot. Be more productive—save time from job prep to final print by printing your projects up to 2X faster.[2] Print your jobs and manage your plotter from virtually anywhere, anytime with the HP Smart app. Get high-quality results—HP Bright Office Inks plot up to 31% more line accuracy and up to 65% more gamut.[7]

RECOMMENDED SUPPLIES & SUPPORT

Technical details

HP DesignJet T630 Printer series

Functions

Print

Print speed, maximum

30 sec/page on D, 76 D prints per hour[1]

Resolution (color)

Up to 2400 x 1200 optimized dpi

Print Technology

HP Thermal Inkjet

Number of print cartridges

4 (C, M, Y, K)

Product disclaimer

This printer is intended to work only with cartridges that have a new or reused HP chip, and it uses dynamic security measures to block cartridges using a non-HP chip. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. A reused HP chip enables the use of reused, remanufactured, and refilled cartridges. More at:http://www.hp.com/learn/ds

Compatible ink types

Dye-based (C, M, Y); pigment-based (K)

Print languages

HP-GL/2, HP-RTL, CALS G4, JPEG, URF

Connectivity, standard

Gigabit Ethernet (1000Base-T), Hi-Speed USB 2.0, Wi-Fi 802.11a/b/g/n, Wi-Fi Direct

Memory, standard

1 GB

Hard disk

None

Non-printable area (cut-sheet)

0.2 x 0.2 x 0.2 x 0.7 in (manual feed); 0.2 x 0.2 x 0.2 x 0.2 in (input tray)

Line accuracy

±0.1%[3]

Maximum optical density (black)

8 L* min/2.10 D[4]

Finished output handling

Sheet feed, roll feed, automatic sheet feeder, media bin, automatic horizontal cutter

Media sizes supported

Auto sheet feeder: A, B; manual feed: A, B, C, D

Media sizes supported

Auto sheet feeder: A4, A3; manual feed: A4, A3, A2, A1

Media sizes, custom

Auto sheet feeder: 8.3 x 11 to 13 x 19 in; manual feed: 8.3 x 11 to 24 x 74.7 in

Media types

Bond and coated paper (bond, coated, heavyweight coated, plain, bright white, blueprint), technical paper (natural tracing), film (clear, matte), photographic paper (satin, gloss, semigloss, polypropylene), self-adhesive (adhesive, polypropylene)

Media sizes, standard

11 to 24 in

Roll external diameter

3.9 in

Media thickness

Up to 11.8 mil

Power

Input voltage (auto ranging): 100-240 V (±10%), 50/60 Hz (±3 Hz), 1200 mA max. Not dual voltage, power supply varies by part number with # Option code identifier.

Power consumption

<35 W (printing), <5.6 W (ready), <2.1 W (sleep), <0.2 W (standby)

Operating temperature range

41 to 104ºF

Warranty

One-year limited hardware warranty

Software included

HP Click, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant

Dimensions (W X D X H)

39.9 x 23.8 x 36.7 in

Weight

63.7 lb

Package weight

82.5 lb

What's in the box

HP DesignJet T630 24-in Printer, printer stand, automatic sheet feeder, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord

Sustainability Impact

More sustainable design reduces CO2e up to 7.3 tons/year by units sold by using up to 30% UL Validated recycled plastic.; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC®-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR® certified; EPEAT® registered

Recommended Media

Q1396A HP Universal Bond Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m (24 in x 150 ft);C6019B HP Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 45.7 m (24 in x 150 ft);C6029C HP Heavyweight Coated Paper (FSC® certified)[5] (recyclable)[6] 610 mm x 30.5 m (24 in x 100 ft)

Dynamic security

Dynamic security enabled printerCertain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.

Offers

FREE Storewide Shipping

This product can only be shipped via FedEx Freight Economy. Please expect a 3-6 day delivery schedule (could be longer for AK/HI). Due to the size of the product, it cannot be returned.

Weekly Deals

Hurry, these deals end soon. FREE shipping storewide.

Save $200 instantly

HP DesignJet T630 Large Format Wireless Plotter Printer - 24", with Mobile Printing (5HB09A) is rated 4.3 out of 5 by 36.
  • y_2024, m_5, d_15, h_4
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_19, tr_17
  • loc_en_US, sid_5HB09A, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_hp
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 10ms
  • REVIEWS, PRODUCT
Rated 1 out of 5 by Johan 713 from So far it SUCKS!!!! this far it sucks. I have to reload the roll of paper after every time I print a drawing. Like it backs up too far and spits the paper out. Then you need to go feed it again and go thru the alignment again.
Date published: 2023-03-28
Rated 5 out of 5 by Joseph Leo from My first 24-inch Plotter My first 24" Plotter, used 36" HPs in past. Fast mode output is good quality, plotter works great. Especially like the automatic alignment of the paper from the roll.
Date published: 2023-03-23
Rated 1 out of 5 by Notanhplover from WPN is a pain! Does not easily connect to with. Did not work out of the box…had to have a technician out to repair.
Date published: 2023-01-13
Rated 4 out of 5 by Stevep20 from Our T630 Plotter It does what it's supposed to do! There are 2 things I don't like about this printer. The first is, that when a job starts printing there is no way to cancel it on the machine itself. The second thing is, that you can't use a 300' roll of paper with this machine, the max is 150'. Other than that it's a pretty nice plotter.
Date published: 2022-12-12
Rated 1 out of 5 by Anonymous from Problems Again ~ Need Support The first one was delivered, and it didn't work at all, we sent it back. The second one works, but the print is not good, there are stripes on each page. We have aligned the cartridge, calibrated the paper roll, etc. still not changes. We need support.
Date published: 2022-10-06
Rated 3 out of 5 by How would one know from Option not listed as an accessory time of purchase Roll cover shown is not included. It is an accessory not listed on the website but in the data sheet. Is a factory install only and if not ordered at same time you are out of luck
Date published: 2022-03-25
Rated 4 out of 5 by BMW123 from Its good but I like the older models. Sad cant find parts for the older 510design jet. They were well made.
Date published: 2021-05-17
Rated 5 out of 5 by Lennox from Why did I wait so long? Works perfect! Setup took a little while, but the paper went in pretty easy, and the rolls are very stable once installed. Perfect for our construction and design firm! Just finishing our second roll and so far it is just what we need!
Date published: 2021-04-14
  • y_2024, m_5, d_15, h_4
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.42
  • cp_1, bvpage1
  • co_hasreviews, tv_19, tr_17
  • loc_en_US, sid_5HB09A, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_hp
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 2ms
  • REVIEWS, PRODUCT

Can you print maps on Mylar to be recorded at the register of deeds? Mylar is often a requirement rather than paper.

Asked by: kathybr
Yes, for HP Polyester Film, also known as Mylar, see this link: https://hp.globalbmg.com/en/search?q=polyester Mylar is a durable, man-made polyester film.
Answered by: HP Team Grant
Date published: 2023-12-26

I asked about Mac compatibility and was told that adding the HP SmartApp on my mobile device would make it Mac compatible...to be clear, I work on an iMac desktop system not a mobile device. What if I don't have a mobile device (yes, I'm old school)?

Asked by: A.M.P.
There is an HP Smart for Desktop app for Macs as well. To make sure you are compatible, visit the app store and see if the app is available for download. If it is available you will be good. From what I remember about the previous question, I cross-referenced your OS to make sure you are compatible and you were. Thanks again and if you need further sales assistance let us know! Thanks for shopping with HP!
Answered by: HP Team Grant
Date published: 2023-05-19

Is a paper roll spindle included?

Asked by: Bobolouie
Hello. Thanks for your question. Yes, the spindle is included with this HP DesignJet T630 24-in Printer.
Answered by: HP Live Expert Cheri
Date published: 2023-05-27

will this machine use designjet 711 ink cartridges?

Asked by: cmorgan
Hello. Thanks for your question. This HP DesignJet T630 24-in Printer uses the HP 712 ink cartridges.
Answered by: HP Live Expert Cheri
Date published: 2023-05-27

Will this printer plot .DWG files from Autocad?

Asked by: Kevinhamby
Thank you for your question! Yes, the HP DesignJet T630 Large Format Wireless Plotter Printer is compatible with AutoCAD files.
Answered by: HP Team Grant
Date published: 2023-05-27

Does this printer also allow us to scan plans to have them in PDF format?

Asked by: Anonymous
This HP DesignJet T630 Large Format Wireless Plotter Printer does not feature a built-in scanner.
Answered by: HP Team Grant
Date published: 2023-02-10

What is the ink cartridges that work with this machine? HP DesignJet T630 Large Format Wireless Plotter Printer - 24&quot;, with Mobile Printing (5HB09A)

Asked by: TeachLib
This HP DesignJet T630 Large Format Wireless Plotter Printer - 24&quot; uses the HP 712 ink which can be found at this link: https://www.hp.com/us-en/shop/sitesearch?keyword=HP%20712%20ink
Answered by: HP Team Grant
Date published: 2024-01-31

Is this plotter Mac compatible (OS 10.14.16)?

Asked by: A.M.P.
Yes, download the HP SmartApp for macOS and the HP DesignJet T630 will be compatible with your Mac. Thanks for your question!
Answered by: HP Team Grant
Date published: 2023-05-17
