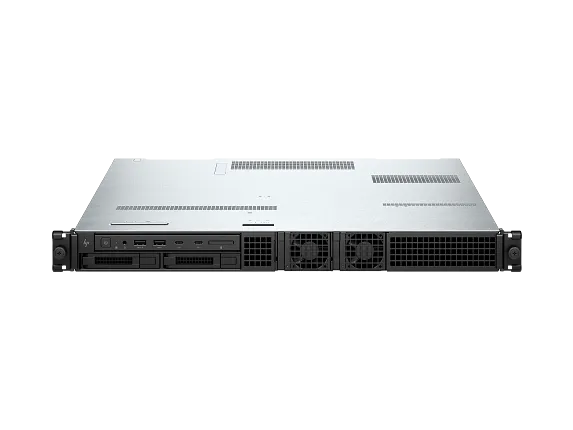

HP Z4 Rack G5 Workstation - Customizable

CUSTOMIZABLE
Business

Other offers available with the product:

FREE Storewide Shipping

Memorial Day Sale

Product # 708C3AV_MB
  • Windows 11 Pro - HP recommends Windows 11 Pro for business
  • Intel® Xeon® processor
  • 16 GB memory; 512 GB Z Turbo SSD storage
  • NVIDIA® T400 (4 GB GDDR6)See all Specs
3% back in HP Rewards
Empower a flexible workforce with Z by HP pro-level performance in a high-density 1U footprint. Specifically designed to pack more units in a single rack, this slim powerhouse delivers the performance your team needs. All with the ability to upgrade and expand as compute demands evolve.

Workhorse Power. Compact 1U size

This 1U workstation packs impressive power for advanced VFX, 3D modeling, and rendering. Get an Intel® Xeon® W-series CPU,[1] support for entry or high-end graphics, and large memory configurations, all with room to upgrade and expand.

Upgrade and expand with ease

Invest in the technology you need now and expand as the compute demands of your workforce evolve. With an easily accessible, tool-less design, get access to add or swap components—like graphics, memory, and storage.

Accelerating advanced AI in-house

Accelerate AI development and inferencing with the Z4 Rack AI workstation, support for entry or high-end graphics delivering impressive AI TOPS for advanced AI. Achieve insights faster by securely handling data on your local workstation.

Designed with the planet in mind

At HP, we care about the impact our products have on our people, communities, and the planet. Z products are designed with sustainability at the forefront. So, you can take pride in choosing Z, knowing that you are helping protect our shared future.[2]

Copilot in Windows 11 - Get answers, inspiration, and summaries

Find the relevant information and ideas you need to power your own ingenuity. Copilot in Windows 11 can deliver answers that are more relevant to you**.

recommended accessories

Technical details

HP Z4 Rack G5 Workstation

Operating system

Included in Current Configuration
Windows 11 Pro for Workstations - HP recommends Windows 11 Pro for business
Alternate Options
Windows 11 Pro for Workstations - HP recommends Windows 11 Pro for business
Ubuntu Linux 24.04
Ubuntu Linux 22.04
Linux-ready

Processor

Included in Current Configuration
Intel® Xeon® w3-2423 Processor (2.1 GHz, up to 4.2 GHz w/Boost, 15 MB cache, 6 core, 120W)
Alternate Options
Intel® Xeon® w3-2425 Processor (3.0 GHz, up to 4.4 GHz w/Boost, 15 MB cache, 6 core, 130W)
Intel® Xeon® w3-2435 Processor (3.1 GHz, up to 4.5 GHz w/Boost, 22.5 MB cache, 4800 MHz, 8 core, 165W)
Intel® Xeon® w5-2445 Processor (3.1 GHz, up to 4.6 GHz w/Boost, 26.25 MB cache, 4800 MHz, 10 core, 175W)
Intel® Xeon® w5-2455X Processor (3.2 GHz, 4.6 GHz w/Boost, 30 MB cache, 4800 MHz, 12 core, 200W)
Intel® Xeon® w5-2465X Processor (3.1 GHz, 4.7 GHz w/Boost, 33.75 MB cache, 16 core, 200W)
Intel® Xeon® w7-2475X Processor (2.6 GHz, 4.8 GHz w/Boost, 37.5 MB cache, 4800 MHz, 20 core, 225W)
Intel® Xeon® w7-2495X Processor (2.5 GHz, 4.8 GHz w/Boost, 45 MB cache, 4800 MHz, 24 core, 225W)

ENERGY STAR compliance

Included in Current Configuration
ENERGY STAR Qualified Configuration

Memory

Included in Current Configuration
16 GB (1 x 16 GB) DDR5-4800 DIMM ECC Registered Memory
Alternate Options
32 GB (1 x 32 GB) DDR5-4800 DIMM ECC Registered Memory
32 GB (2 x 16 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)
64 GB (2 x 32 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)
64 GB (4 x 16 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)
128 GB (2 x 64 GB) DDR5-4800 DIMM ECC Registered Memory
128 GB (4 x 32 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)
256 GB (4 x 64 GB) DDR5-4800 DIMM ECC Registered Memory (1 processor)

Internal PCIe storage

Alternate Options
512 GB HP Z Turbo Drive Dual Pro TLC SSD
1 TB HP Z Turbo Drive Dual Pro TLC SSD
2 TB HP Z Turbo Drive Dual Pro TLC SSD
4 TB HP Z Turbo Drive Dual Pro NVMe SSD

Secondary internal PCIe storage

Alternate Options
512 GB HP Z Turbo Drive PCIe NVMe Dual Pro TLC 2nd SSD
1 TB HP Z Turbo Drive PCIe NVMe Dual Pro TLC 2nd SSD
2 TB HP Z Turbo Drive Dual Pro TLC 2nd SSD
4 TB HP Z Turbo Drive Dual Pro NVMe 2nd SSD

Internal M.2 storage

Included in Current Configuration
512 GB HP Z Turbo Drive OPAL 2 Self-Encrypted (SED) M.2 SSD
Alternate Options
512 GB HP Z Turbo Drive M.2 SSD
1 TB HP Z Turbo PCIe 4x4 OPAL 2 Self-Encrypted (SED) M.2 TLC SSD
1 TB HP Z Turbo PCIe 4x4 M.2 TLC SSD
2 TB HP Z Turbo Drive TLC M.2 SSD
2 TB HP Z Turbo Drive OPAL 2 Self-Encrypted (SED) M.2 TLC SSD
4 TB HP Z Turbo Drive OPAL 2 Self-Encryting (SED) M.2 SSD

Secondary internal M.2 storage

Alternate Options
512 GB HP Z Turbo Drive M.2 2nd SSD
1 TB HP Z Turbo PCIe 4x4 M.2 TLC 2nd SSD
2 TB HP Z Turbo Drive TLC M.2 2nd SSD
4 TB HP Z Turbo Drive M.2 2nd SSD

3rd internal M.2 storage

Alternate Options
512 GB HP Z Turbo Drive M.2 3rd SSD
1 TB HP Z Turbo PCIe 4x4 OPAL 2 Self-Encrypted (SED) M.2 TLC 3rd SSD
2 TB HP Z Turbo Drive TLC M.2 3rd SSD
4 TB HP Z Turbo Drive M.2 3rd SSD

4th internal M.2 storage

Alternate Options
512 GB HP Z Turbo Drive PCIe M.2 TLC 4th SSD
1 TB HP Z Turbo PCIe 4x4 M.2 TLC 4th SSD
2 TB HP Z Turbo Drive TLC M.2 4th SSD
4 TB HP Z Turbo Drive M.2 4th SSD

Internal storage

Alternate Options
1 TB 7200 RPM SATA 3.5" Enterprise HDD
2 TB 7200 RPM SATA Enterprise 3.5" HDD
4 TB 7200 RPM SATA 3.5" Enterprise HDD
8 TB 7200 RPM SATA Enterprise 3.5" HDD
12 TB 7200 RPM SATA-6G 3.5" Enterprise HDD

Internal storage removable

Alternate Options
512 GB HP Z Turbo M.2 2nd Front Load Removable SSD
1 TB HP Z Turbo M.2 2nd Front Load Removable SSD
2 TB HP Z Turbo M.2 2nd Front Load Removable SSD
4 TB HP Z Turbo M.2 2nd Front Load Removable SSD

Internal OS load storage options

Included in Current Configuration
Operating System Load to M.2
Alternate Options
Operating System Load to SATA

Real-time data backup

Alternate Options
RAID 0 Striped Array Configuration
RAID 1 Mirrored Array Configuration

Graphics

Included in Current Configuration
AMD Radeon™ PRO W7500 (8 GB GDDR6, 4 x DisplayPort 2.1) Graphics Card
Alternate Options
No Integrated Graphics
NVIDIA® T1000 (8 GB GDDR6, 4xMini DisplayPort, PCIe x16) Graphics
AMD Radeon™ PRO W7600 (8 GB GDDR6; 4 x DisplayPort 2.1) Graphics Card
NVIDIA RTX™ 4000 Ada Generation (20 GB GDDR6 ECC, 4 x DisplayPort 1.4) Graphics
NVIDIA RTX™ 5000 Ada Generation (32 GB GDDR6 ECC, 4 x DisplayPort 1.4) Graphics
NVIDIA RTX™ 4500 Ada Generation (24 GB GDDR6 ECC, 4 x DisplayPort 1.4a) Graphics
NVIDIA RTX 6000 Ada Generation (48 GB GDDR6, 4 x DisplayPort 1.4) Graphics

Additional networking options

Alternate Options
Allies Telesis AT-2011T/2-901 Dual Port 1 GBE Network Interface Card
Intel® I225-T1 2.5GbE Ethernet Network Adapter
AT-2914SX/LC PCIe Fiber Adapter
Intel® X550-T2 10GbE Dual Port NIC
NVIDIA® Mellanox ConnectX®-6 Dx Dual Port 10/25GBE SFP28 Network Interface Card

Application software

Alternate Options
Data Science Stack
WSL2/Ubuntu Data Science Stack

Additional application software

Included in Current Configuration
No HP Anyware Needed

Keyboard

Included in Current Configuration
HP USB 320K Keyboard
Alternate Options
No Included Keyboard

Mouse

Included in Current Configuration
HP Wired 320M Mouse
Alternate Options
No included mouse - Reduce plastic

Power supply

Included in Current Configuration
C13 1.83m Sticker Conventional Straight Desktop Power Cord
Alternate Options
C13 1.8m Sticker Conventional Straight CCC Desktop Power Cord
C13 1.83m 15A Sticker Conventional Straight Desktop Power Cord
C13 1.83m 15A Sticker Conventional Straight x2 Desktop Power Cord
C13-C14 2.0m 15A 100-127V Countries Sticker Conventional Straight x2 Desktop Power Cord

Graphics connectors

Included in Current Configuration
No Adapters Needed
Alternate Options
HP mini DisplayPort-to-DisplayPort Adapter
HP Display to DVI SL Adapter
HP DisplayPort to HDMI 2.0
HP mini DisplayPort-to-DisplayPort Adapter (2-pack)
HP DP to VGA Adapter
HP mini DisplayPort-to-DisplayPort Adapter (4-pack)

Label

Alternate Options
FDA Class 1 Medical Device Label

LAN Transceivers

Alternate Options
HP 10GbE SFP+ SR/SW LC Fiber Optic Transceiver
HP 10GbE SFP+ SR/SW LC 2nd Fiber Optic Transceiver
HP 25GbE SFP 28 LC Fiber Optic Transceiver
HP 25GbE SFP 28 LC 2nd Fiber Optic Transceiver

Security

Alternate Options
HP Platform Certificate
HP Remove Computrace BIOS Module

Accessories

Alternate Options
HP Internal Serial Port/PS/2 Ports
HP 3.5 in Drive Cage Adapter
HP Z4 G4 Rack Front Bezel/Security
HP 2.5 in M.2 Dual Adapter Carriers
HP 2.5 in Drive Carrier
HP Z4 Rack Dual PCIe Gen5 x16 + PCIe Gen5 x16(x8) slot Riser Kit
No Rail Rack Kit
HP Z4 Rack Remote System Controller Support Bracket
HP ZCentral 4R Rail Rack Kit
Intel® VROC NVMe SSD Standard Controller Module
Intel® VROC NVMe SSD Premium Controller Module

Warranty

Included in Current Configuration
One-year (1/1/1) limited warranty

External I/O Ports

Front : 4 USB Type-A 5Gbps signaling rate (1 charging); 1 headset connector
Rear : 2 USB Type-A 5Gbps signaling rate; 1 RJ-45

Expansion slots

2 M.2 PCIe 4 x4; 1 PCIe 5 x16 mechanical (x8 electrical); 1 PCIe 5 x8 mechanical (x8 electrical); 1 PCIe 5 x16 mechanical (x8 or x16 electrical)
PCIe slots 2 and 3 only come standard if the configuration demands them. Otherwise, they are an optional add-on feature via the Dual Slot Riser, which can be configured CTO or aftermarket.

Memory slots

4 DIMM

Software included

HP PC Hardware Diagnostics UEFI; HP Performance Advisor; HP Support Assistant; HP PC Hardware Diagnostics Windows; HP Privacy Settings; HP Desktop Support Utilities; HP Manageability Integration Kit; HP Notifications; HP Anyware; HP Data Science Stack; HP Services Scan; HP Data Science Stack Manager; myHP

Security management

Full volume encryption; HP Secure Erase; Kensington lock slot; Secure authentication; TPM 2.0 certified; HP BIOSphere; HP Sure Run; HP Sure Click; HP Sure Sense; HP Sure Admin; HP Platform Certificate; HP Sure Start; HP Sure Recover; Self-Encrypted Drives

Management software

HP Anyware Remote System Controller; HP Client Management Script Library (download); HP Cloud Recovery; HP Driver Packs; HP Image Assistant Gen5 (download)

Weight

Starting at 21.6 lb (without rack rails); Starting at 27.6 lb (with rack rails)

Dimensions (W X D X H)

1.69 x 17.25 x 25.8 in (without rack mounting ears)
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getAggregateRating, 21ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • CLOUD, getReviews, 3ms
  • REVIEWS, PRODUCT
  • bvseo-msg: The resource to the URL or file is currently unavailable.;

Will this fit in a rack with posts 55cm apart? How deep is the server without rails, how what is the minimum depth the rails can be mounted on?

Asked by: AVIT Engineer
Thank you for your question! The HP Z4 Rack G5 Workstation has dimensions of: (W X D X H)1.69 x 17.25 x 25.8 in
Answered by: HP Team Grant
Date published: 2024-11-29
